GFCI Receptacles

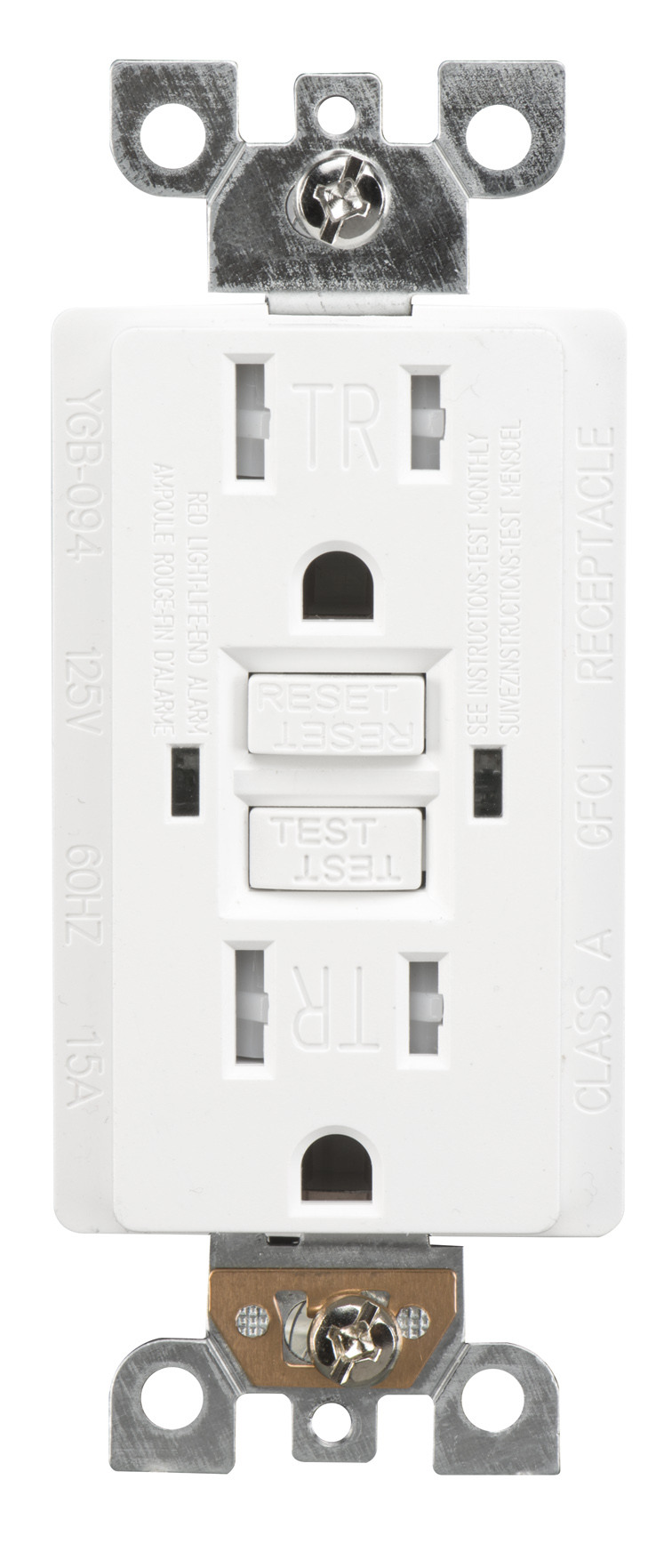

YGB-094 15A Tamper-Resistant Self-Test GFCI Receptacle
Model: YGB-094
15A/125V
UL Listed
YGB-094 15A/125V tamper-resistant self-test GFCI receptacle with UL listing, automatic self-test and continuous ground-fault protection. Request exact-model files and OEM support.
YGB-094 is a 15A/125V tamper-resistant self-test GFCI receptacle. It performs an automatic self-test every 40 seconds, provides continuous ground-fault protection and is shown as UL Listed for exact-model document requests.
Verified Product Specifications
| Model | YGB-094 |
|---|---|
| Product Name | 15A Tamper-Resistant Self-Test GFCI Receptacle |
| Category | GFCI Receptacles |
| Electrical Rating | 15A/125V AC |
| Self-Test Interval | Every 40 seconds |
| Trip Threshold | 5 mA |
| Trip Time | <25 ms |
| Mechanical Life | 6,000 cycles |
| Dimensions | 105 × 42.8 × 40.7 mm |
| Weight | Approx. 123 g |
| Housing Material | PC |
| Wire Range | 12–14 AWG |
| Dielectric Withstand | 1500V AC |
| Flammability Rating | UL 94 V-2 |
| Color | White |
| Certification | UL Listed |
| Standard MOQ | 100 pcs per model |
| Custom MOQ | 2,000 pcs per model |
B2B Supply Support
Manufacturer: Jiangsu Barep Smart Technology Co., Ltd
- Standard products generally start from 100 pcs per model
- Customized products generally start from 2,000 pcs per model
- OEM packaging and private label support
- Exact-model datasheet and certification file request support
- Sample and bulk-order communication through WhatsApp or email
Applications
- Residential kitchens and bathrooms
- Commercial renovation projects
- Distributor and private-label programs
Certification Files
UL Listed certification files are available upon request for model YGB-094. Confirm the required market and exact model before document approval.
OEM Options
Custom logo, color, retail box, barcode labels, master cartons and Amazon seller packaging can be discussed based on order quantity. Review BAREP OEM and private label support →
Self-test and protection functions
The device performs an automatic self-test every 40 seconds. LED indication provides power and protection-status feedback, while continuous protection can detect and trip for an actual ground fault during the self-test process.
Installation and approval checks
Confirm the 15A/125V rating, 12–14 AWG wire range and exact YGB-094 UL file before approval. Review dimensions, product markings and the installation guide with the production sample.
YGB-094 — Product Questions
What is the electrical rating of YGB-094?
YGB-094 is rated 15A/125V AC. It has tamper-resistant shutters and performs an automatic self-test every 40 seconds.
Which documents can I request for YGB-094?
Request the YGB-094 datasheet, installation guide and exact-model UL listing file. Include the target country so the applicable certification documents can be reviewed for your project.
What should I include in a quotation request?
Send model YGB-094, quantity, target country, company name and any logo, color or packaging requirements. Standard MOQ is 100 pcs per model; custom MOQ is 2,000 pcs per model. Final configuration and quotation are confirmed with your inquiry.
