GFCI Receptacles

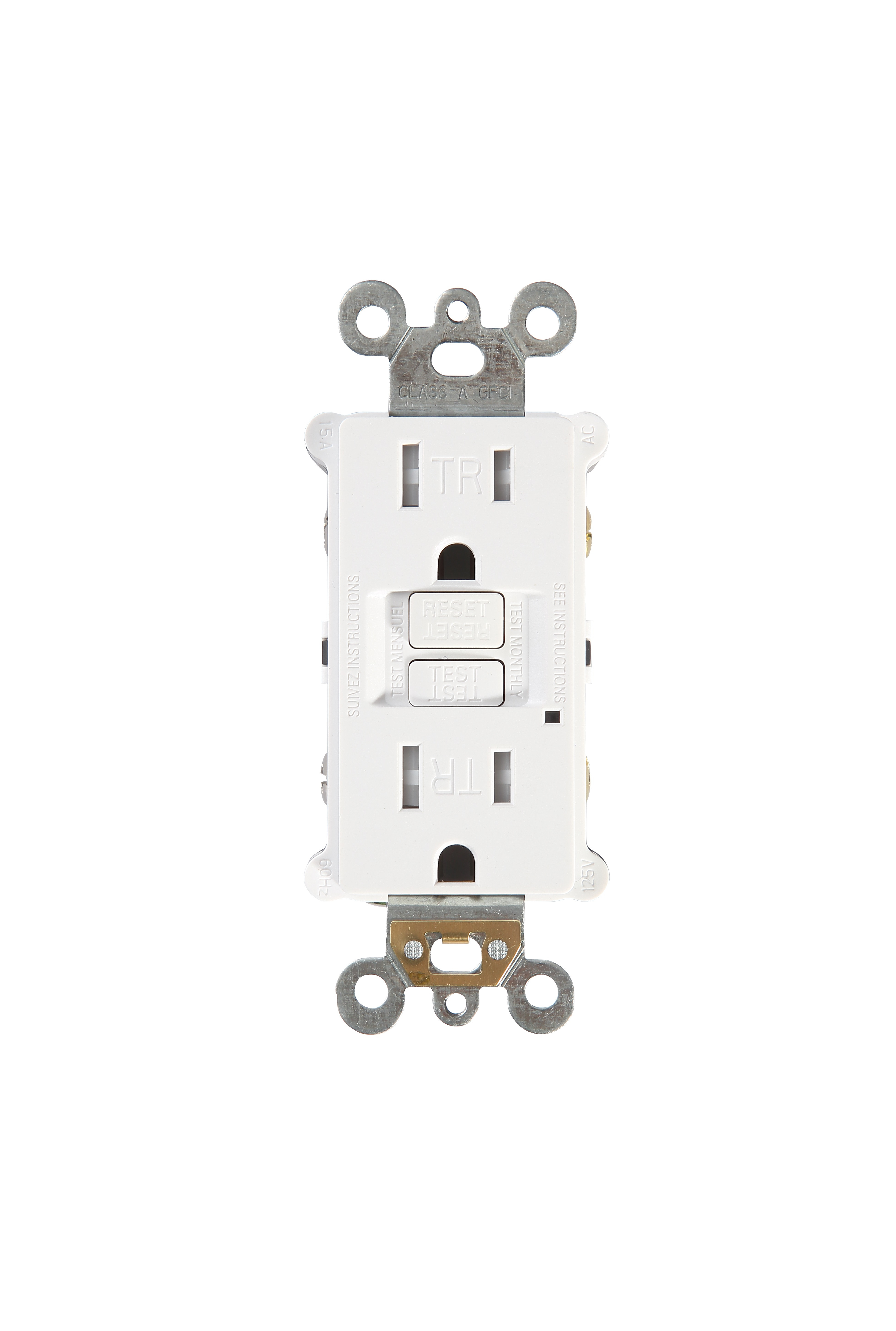

BAS-004M 15A Thin-Style Tamper-Resistant GFCI Receptacle
Model: BAS-004M
15A/125V
UL Listed
BAS-004M is a 15A/125V thin-style tamper-resistant GFCI with automatic self-test every 40 seconds, 5 mA trip threshold and a published 38.5 mm body depth.
BAS-004M provides continuous ground-fault protection and end-of-life indication. The cULus model is evaluated to UL 498, UL 943 and CSA C22.2 No. 144.1, with a published trip time below 25 ms.
Product Specifications
| Model | BAS-004M |
|---|---|
| Product Type | 15A tamper-resistant self-test GFCI |
| Receptacle Rating | 15A, 125VAC |
| Dimensions | 105 × 43.2 × 38.5 mm |
| Weight | 115 g |
| Trip Threshold / Time | 5 mA / less than 25 ms |
| Mechanical Life | 6,000 cycles |
| Flame Class | UL94 V2 |
| Wire Range | 12–14 AWG |
| Certification | cULus |
| Standards | UL 498; UL 943; CSA C22.2 No. 144.1 |
B2B Supply Support
- OEM packaging and private label support
- Product catalog, datasheet and certification file request support
- Wholesale quotation support for importers, distributors and brand owners
- Sample and bulk order communication through WhatsApp or email
Applications
- Residential kitchens and bathrooms
- Commercial renovation projects
- Distributor replacement stock
Certification Files
UL Listed certification files are available upon request for this model. Contact BAREP with the model number and required market for document support.
OEM Options
Custom logo, retail box, barcode labels, master cartons and Amazon seller packaging can be discussed based on order quantity.
What is distinct about BAS-004M?
BAS-004M is confirmed as a thin-style 15A/125V tamper-resistant GFCI. Its specification lists a 40-second automatic self-test interval, 5 mA trip threshold, trip time below 25 ms and UL94 V2 enclosure material.
Thin-style GFCI review checklist
- Confirm the 38.5 mm published thickness against the exact-model drawing.
- Request the BAS-004M UL file, datasheet and installation information.
- Review a sample before approving appearance or private label packaging.
