USB Wall Outlets

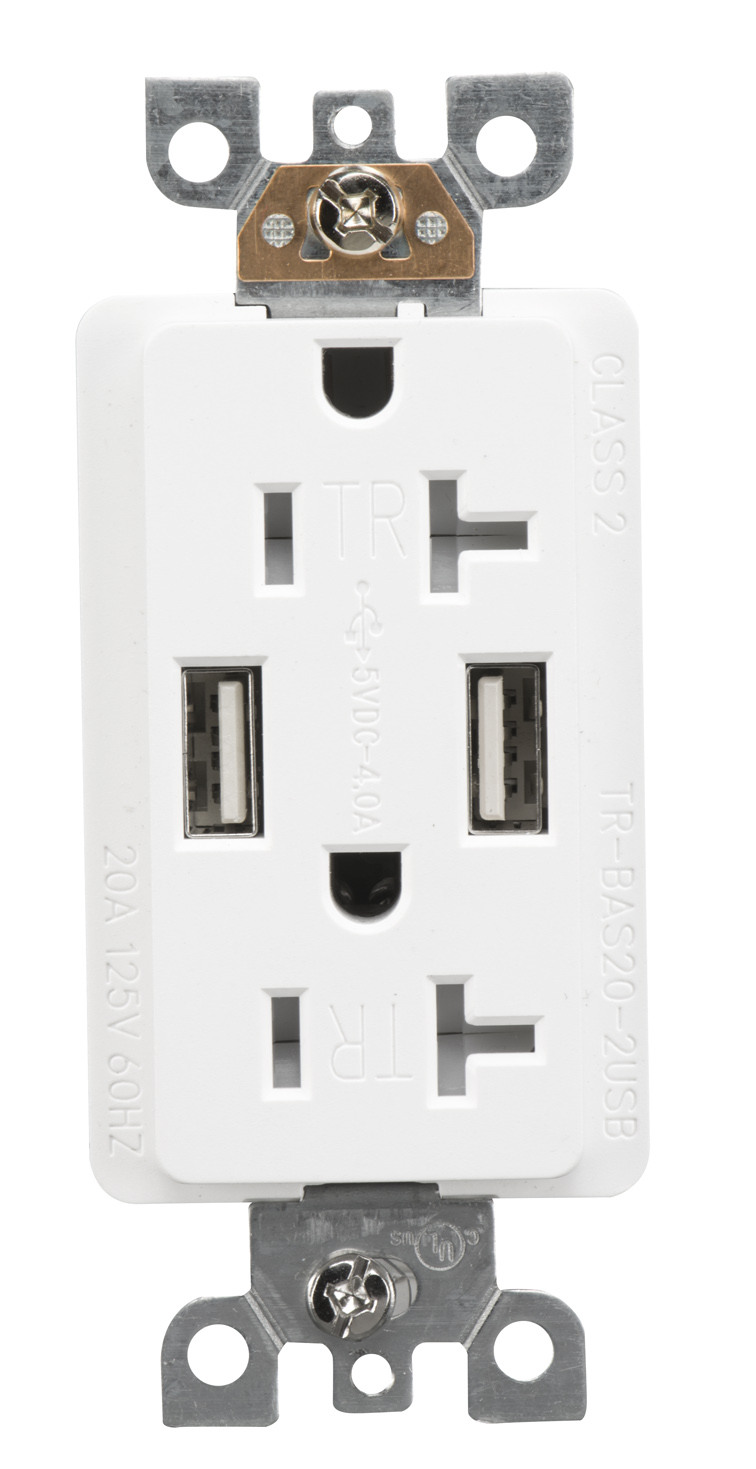

20A TR Dual USB-A Wall Outlet
Model: TR-BAS20-2USB
20A/125V · 5VDC/4.0A
UL Listed
TR-BAS20-2USB is a 20A/125V tamper-resistant duplex receptacle with two USB-A ports rated 5VDC/4.0A. The cULus model is evaluated to UL 498 and CSA C22.2 No. 42.
TR-BAS20-2USB combines two USB Type-A ports with two 20A AC outlets. Its published dimensions are 105 × 44 × 42 mm, with a 121 g PC enclosure assembly and 12–14 AWG wire range.
Product Specifications
| Model | TR-BAS20-2USB |
|---|---|
| Product Type | 20A TR duplex receptacle with two USB-A ports |
| Receptacle Rating | 20A, 125V, 60Hz |
| USB Rating | 5VDC, 4.0A |
| Dimensions | 105 × 44 × 42 mm |
| Weight | 121 g |
| Enclosure / Flame Class | PC / UL94 V2 |
| Dielectric Withstand | 1.25 kV for 1 minute |
| Wire Range | 12–14 AWG |
| Certification | cULus |
| Standards | UL 498; CSA C22.2 No. 42 |
B2B Supply Support
- OEM packaging and private label support
- Product catalog, datasheet and certification file request support
- Wholesale quotation support for importers, distributors and brand owners
- Sample and bulk order communication through WhatsApp or email
Applications
- Hotel room upgrades
- Multifamily housing projects
- Retail and private label programs
Certification Files
The supplied UL certificate covers TR-BAS20-2USB. Request the exact-model certification file and current datasheet for approval records.
OEM Options
Custom logo, retail box, barcode labels, master cartons and Amazon seller packaging can be discussed based on order quantity.
Confirmed 20A/125V model data
TR-BAS20-2USB is confirmed as the 20A/125V tamper-resistant version with two USB Type-A ports and two AC outlets. The published USB rating is 5VDC/4.0A, and the supplied UL certificate lists this exact model.
Documents to verify before approval
Request the exact TR-BAS20-2USB datasheet, UL file, drawing and sample to verify dimensions, USB output conditions, installation requirements and product labeling before completing purchasing specifications.
