USB Wall Outlets

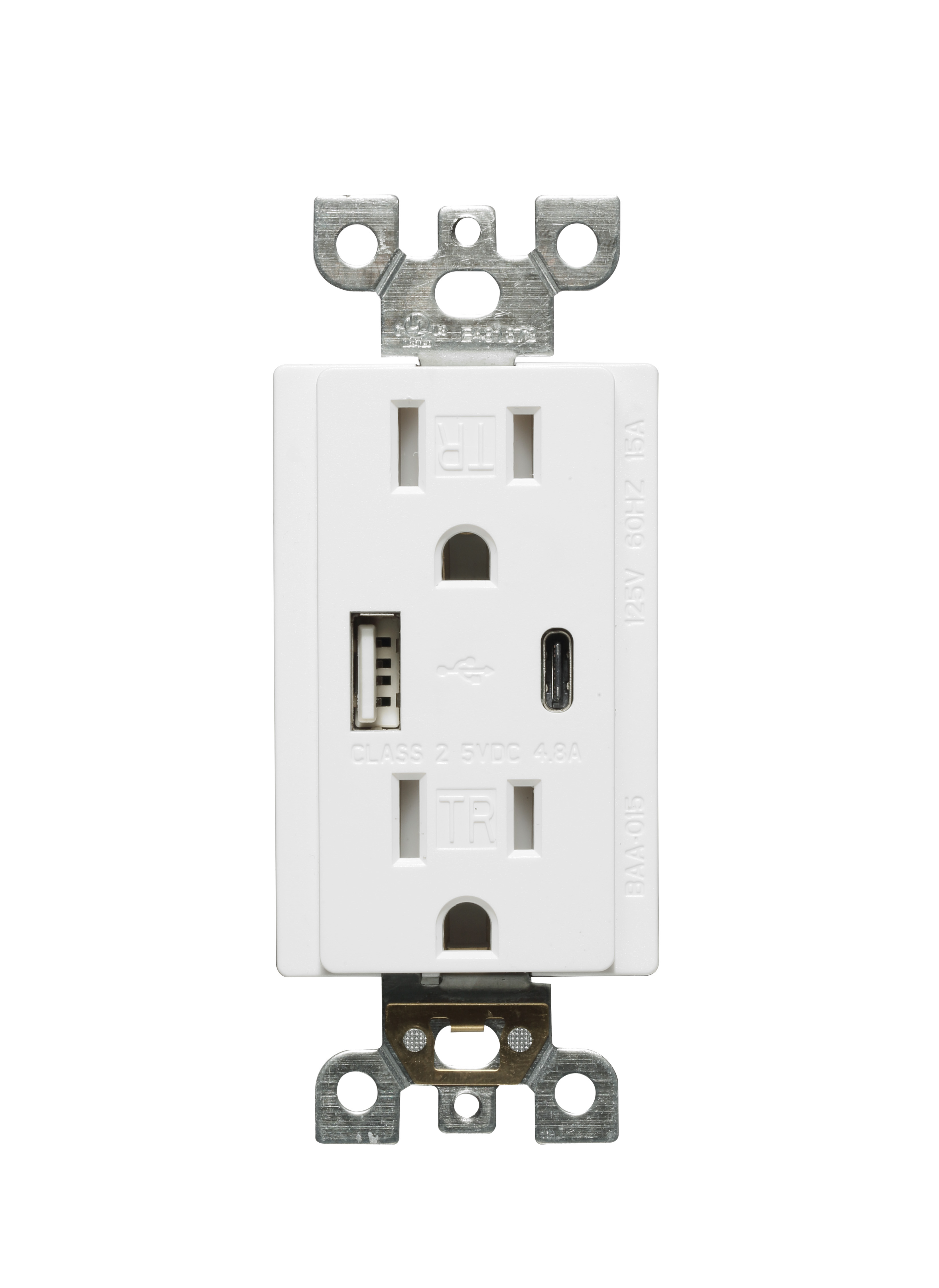

BAA-015 15A Wall Outlet with USB Type-A and Type-C

Model: BAA-015

15A/125V · 5VDC 4.8A

UL Listed

BAA-015 15A/125V wall outlet with one USB Type-A port, one USB Type-C port, two AC outlets and 5VDC 4.8A USB output. UL Listed; OEM support available.

Answer Summary

BAA-015 combines a 15A/125V AC receptacle with one USB Type-A port and one USB Type-C port. The two USB ports provide a stated 5V DC, 4.8A output, without an unverified per-port or shared-output claim, and the model is shown as UL Listed.

UL Listed1 Type-A + 1 Type-CTamper Resistant2 AC Outlets

WhatsApp Quote Request Details

Verified Product Specifications

Model	BAA-015
Product Name	15A Wall Outlet with USB Type-A and Type-C
Category	USB Wall Outlets
Receptacle Rating	15A, 125V AC, 60Hz
USB Ports	1 × Type-A + 1 × Type-C
USB Output	5V DC, 4.8A
AC Outlets	2
Tamper-Resistant Shutters	Yes
Dimensions	105 × 43 × 45 mm
Weight	Approx. 115 g
Housing Material	Flame-retardant PC
Wire Range	12–14 AWG
Dielectric Withstand	1.25 kV for 1 minute
Flammability Rating	UL 94 V-2
Color	White
Certification	UL Listed
Standard MOQ	100 pcs per model
Custom MOQ	2,000 pcs per model

B2B Supply Support

Standard products generally start from 100 pcs per model
Customized products generally start from 2,000 pcs per model
OEM packaging and private label support
Exact-model datasheet and certification file request support
Sample and bulk-order communication through WhatsApp or email

Applications

Hotel room and multifamily upgrades
Residential charging locations
Retail and private-label programs

Certification Files

UL Listed certification files are available upon request for model BAA-015. Confirm the required market and exact model before document approval.

OEM Options

Custom logo, color, retail box, barcode labels, master cartons and Amazon seller packaging can be discussed based on order quantity. Review BAREP OEM and private label support →

USB and AC configuration

BAA-015 provides one USB Type-A port, one USB Type-C port and two AC outlets. The supplied specification states 5V DC, 4.8A USB output; confirm charging behavior with the exact sample because the source does not define per-port versus shared current.

Construction and approval checks

The outlet uses a flame-retardant PC housing, tamper-resistant shutters and a 12–14 AWG wire range. Confirm the exact BAA-015 UL file, dimensions, product markings and installation requirements before bulk approval.
