USB Wall Outlets
20A Dual USB-A Wall Outlet
Model: BAA-023D
20A/125V · 5VDC/4.8A
UL Listed

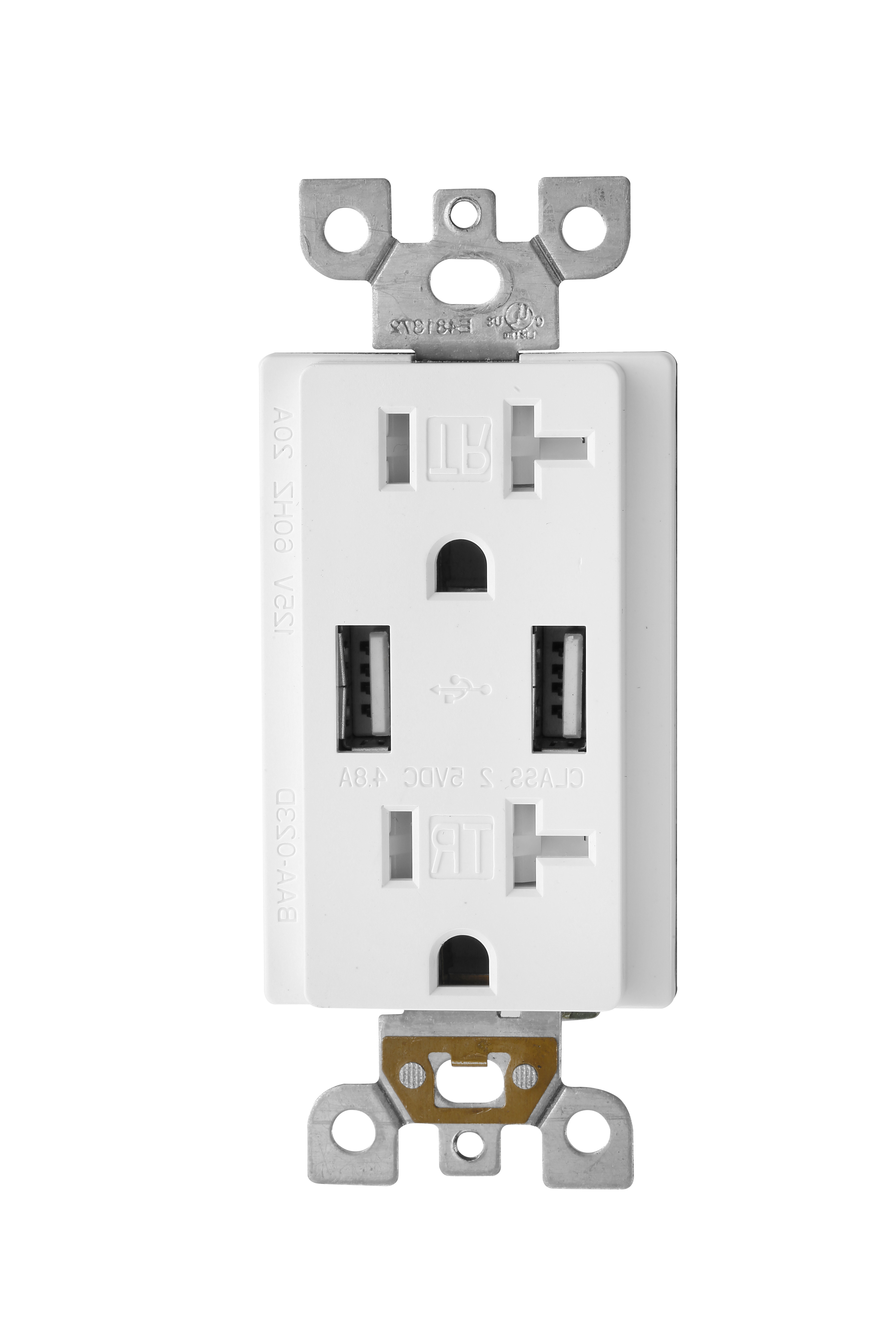

BAA-023D is a 20A/125V tamper-resistant duplex receptacle with two USB-A charging ports rated 5VDC/4.8A. The model is cULus certified to UL 498 and CSA C22.2 No. 42-10.
BAA-023D combines two 20A AC outlets with two USB-A ports in a tamper-resistant design. Its published dimensions are 105 × 43 × 45 mm, with a 114 g PC enclosure assembly and 12–14 AWG wiring range.
Product Specifications
| Model | BAA-023D |
|---|---|
| Product Type | 20A TR duplex receptacle with two USB-A ports |
| Receptacle Rating | 20A, 125V, 60Hz |
| USB Rating | 5VDC, 4.8A |
| Dimensions | 105 × 43 × 45 mm |
| Weight | 114 g |
| Enclosure / Flame Class | PC / UL94 V2 |
| Dielectric Withstand | 1.25 kV for 1 minute |
| Wire Range | 12–14 AWG |
| Certification | cULus |
| Standards | UL 498; CSA C22.2 No. 42-10 |
B2B Supply Support
- OEM packaging and private label support
- Product catalog, datasheet and certification file request support
- Wholesale quotation support for importers, distributors and brand owners
- Sample and bulk order communication through WhatsApp or email
Applications
- Hotel room upgrades
- Multifamily housing projects
- Retail and private label programs
Certification Files
cULus certification documents covering BAA-023D are available upon request. Include the complete model number and destination market in your request.
OEM Options
Custom logo, retail box, barcode labels, master cartons and Amazon seller packaging can be discussed based on order quantity.
What is published for BAA-023D?
BAA-023D is confirmed as a 20A/125V tamper-resistant wall outlet with two USB Type-A ports and a published 5VDC/4.8A USB rating. The supplied UL certificate includes BAA-023D in both US and Canadian model coverage.
Choosing between BAA-023D and BAA-023
BAA-023D is the 20A version and publishes a USB output entry; BAA-023 is the 15A alternative. Select by the approved branch-circuit and receptacle specification, then validate dimensions, charging behavior, certification and sample construction under the selected model.
Related Products
More from USB Wall Outlets
Need pricing, samples or certification files?
Send the model number and target quantity. BAREP will help prepare product details, certification information and quotation support.
