Standard Wall Outlets
YGB-047 15A Tamper-Resistant Duplex Receptacle
Model: YGB-047
15A/125V
UL Listed

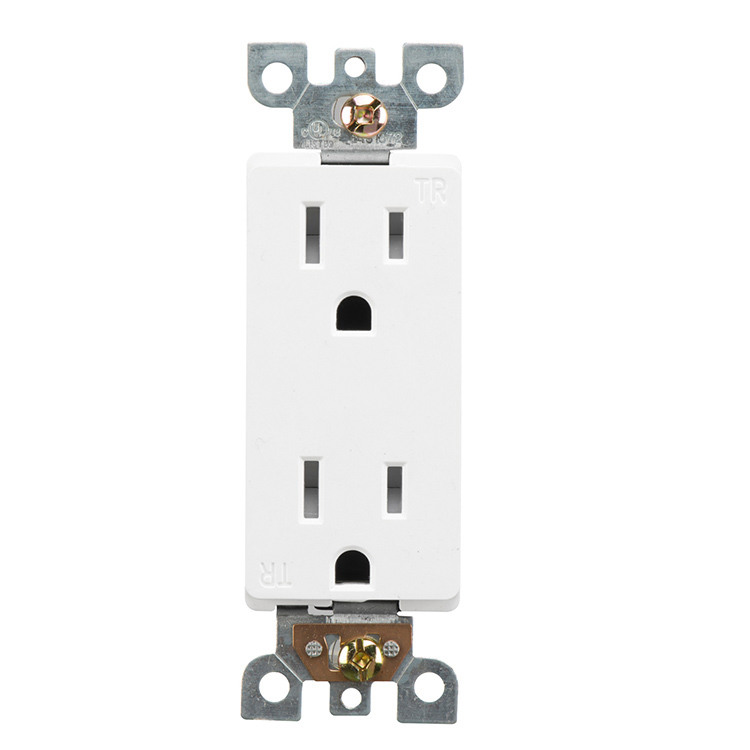

YGB-047 is a 15A/125V 5-15R tamper-resistant decorator duplex receptacle with heavy-duty brass contacts and a zinc-plated steel mounting yoke.
YGB-047 is cULus certified to UL 498 and CSA C22.2 No. 42-10. The latest English specification lists 105 × 33.6 × 25.5 mm dimensions, 59 g weight and UL94 V2 enclosure material.
Product Specifications
| Model | YGB-047 |
|---|---|
| Product Type | 5-15R tamper-resistant decorator duplex receptacle |
| Receptacle Rating | 15A, 125V |
| Dimensions | 105 × 33.6 × 25.5 mm |
| Weight | 59 g |
| Enclosure | PC |
| Contacts / Yoke | Copper alloy / zinc-plated steel |
| Dielectric Withstand | 2,000VAC for 1 minute |
| Flame Class | UL94 V2 |
| Certification | cULus |
| Standards | UL 498; CSA C22.2 No. 42-10 |
B2B Supply Support
- OEM packaging and private label support
- Product catalog, datasheet and certification file request support
- Wholesale quotation support for importers, distributors and brand owners
- Sample and bulk order communication through WhatsApp or email
Applications
- Residential wiring projects
- Commercial outlet replacement
- Wholesale distributor supply
Certification Files
UL Listed certification files are available upon request for this model. Contact BAREP with the model number and required market for document support.
OEM Options
Custom logo, retail box, barcode labels, master cartons and Amazon seller packaging can be discussed based on order quantity.
Why does YGB-047 require its own document review?
YGB-047 has its own dimensions, construction details and certification coverage. Buyers should approve it against the YGB-047 drawing, sample and UL file rather than substituting documentation from another 15A duplex receptacle.
YGB-047 review record
| Published on this page | 15A/125V, tamper resistant, cULus, UL94 V2 |
|---|---|
| Request before approval | Exact-model drawing, certification file and sample |
| Send for quotation | Quantity, color, barcode and packaging format |
