GFCI Receptacles

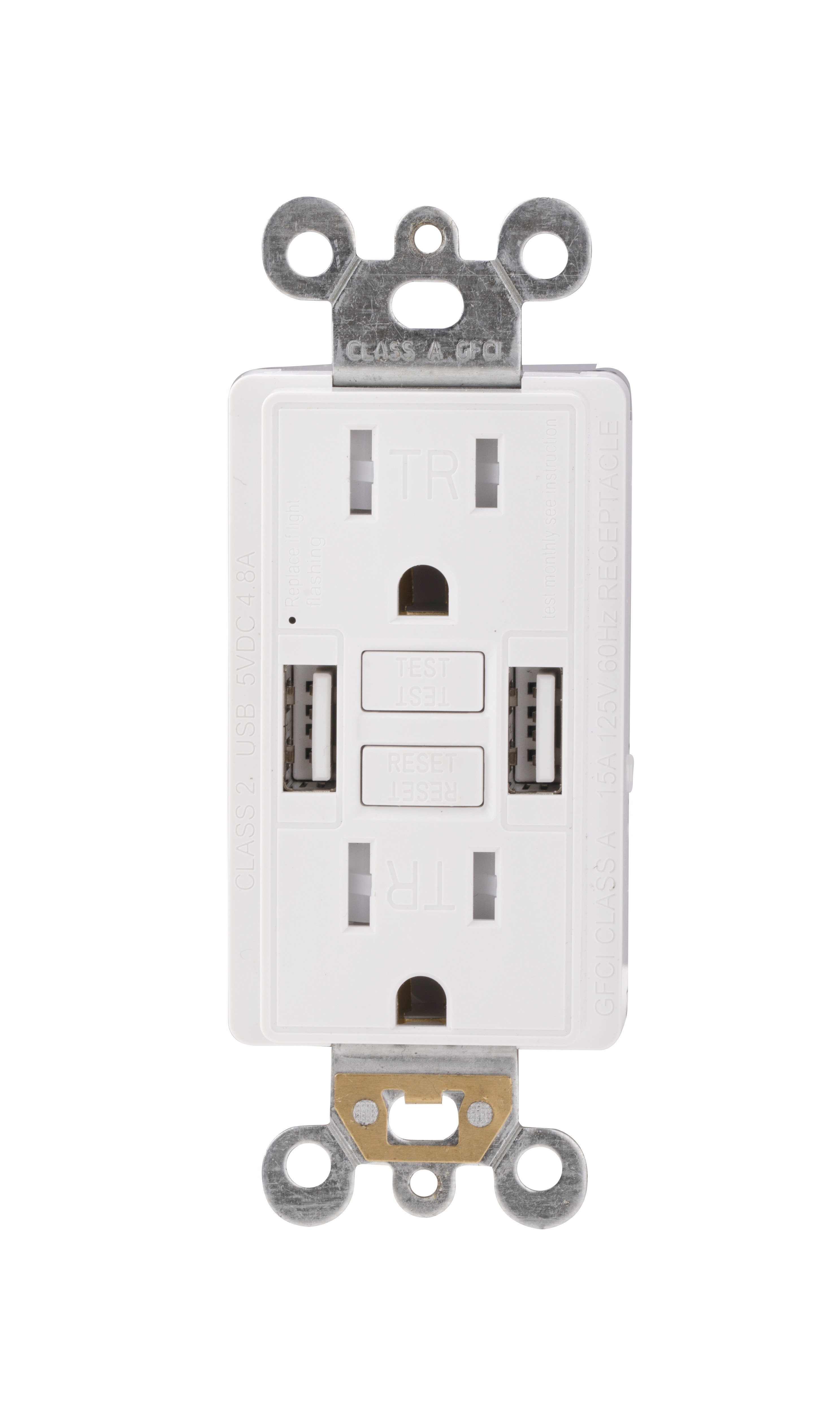

15A GFCI USB Outlet With 2 USB-A Ports
Model: BCG-001U
15A/125V · USB 5VDC/4.8A shared
ETL Listed
BCG-001U is a 15A/125V Class A tamper-resistant GFCI with two USB-A ports rated 5VDC/4.8A shared. USB power switches off when the GFCI trips.
BCG-001U combines self-test GFCI protection, two USB-A charging ports and tamper-resistant shutters. The ETL-listed model has a 4–6 mA trip threshold, trip time up to 25 ms and 105 × 41 × 47.5 mm dimensions.
Product Specifications
| Model | BCG-001U |
|---|---|
| Product Type | 15A TR self-test GFCI with two USB-A ports |
| GFCI Rating | 15A, 125VAC, Class A |
| USB Rating | 5VDC, 4.8A shared |
| Dimensions | 105 × 41 × 47.5 mm |
| Weight | Approximately 142 g |
| Trip Threshold / Time | 4–6 mA / 25 ms maximum |
| Mechanical Life | 3,000 cycles |
| Flame Class | UL94 V2 |
| Wire Range | 12–14 AWG |
| Certification | ETL Listed |
| Specification Standards | UL 943; UL 498; UL 1310 |
B2B Supply Support
- OEM packaging and private label support
- Product catalog, datasheet and certification file request support
- Wholesale quotation support for importers, distributors and brand owners
- Sample and bulk order communication through WhatsApp or email
Applications
- Residential kitchens and bathrooms
- Commercial renovation projects
- Distributor replacement stock
Certification Files
The supplied Intertek authorization covers BCG-001U. Request the exact-model ETL document and current datasheet for approval records.
OEM Options
Custom logo, retail box, barcode labels, master cartons and Amazon seller packaging can be discussed based on order quantity.
When does BCG-001U fit a buyer's line?
BCG-001U combines a 15A tamper-resistant self-test GFCI with two USB Type-A ports rated 5VDC/4.8A shared. The USB section loses power when the GFCI trips, extending ground-fault protection to connected low-voltage devices.
BCG-001U and BCG-002U selection
Choose BCG-001U when the approved schedule calls for the published 15A version. BCG-002U is the corresponding 20A model. Confirm the charging conditions, installation requirements and label artwork against the BCG-001U sample and datasheet.
