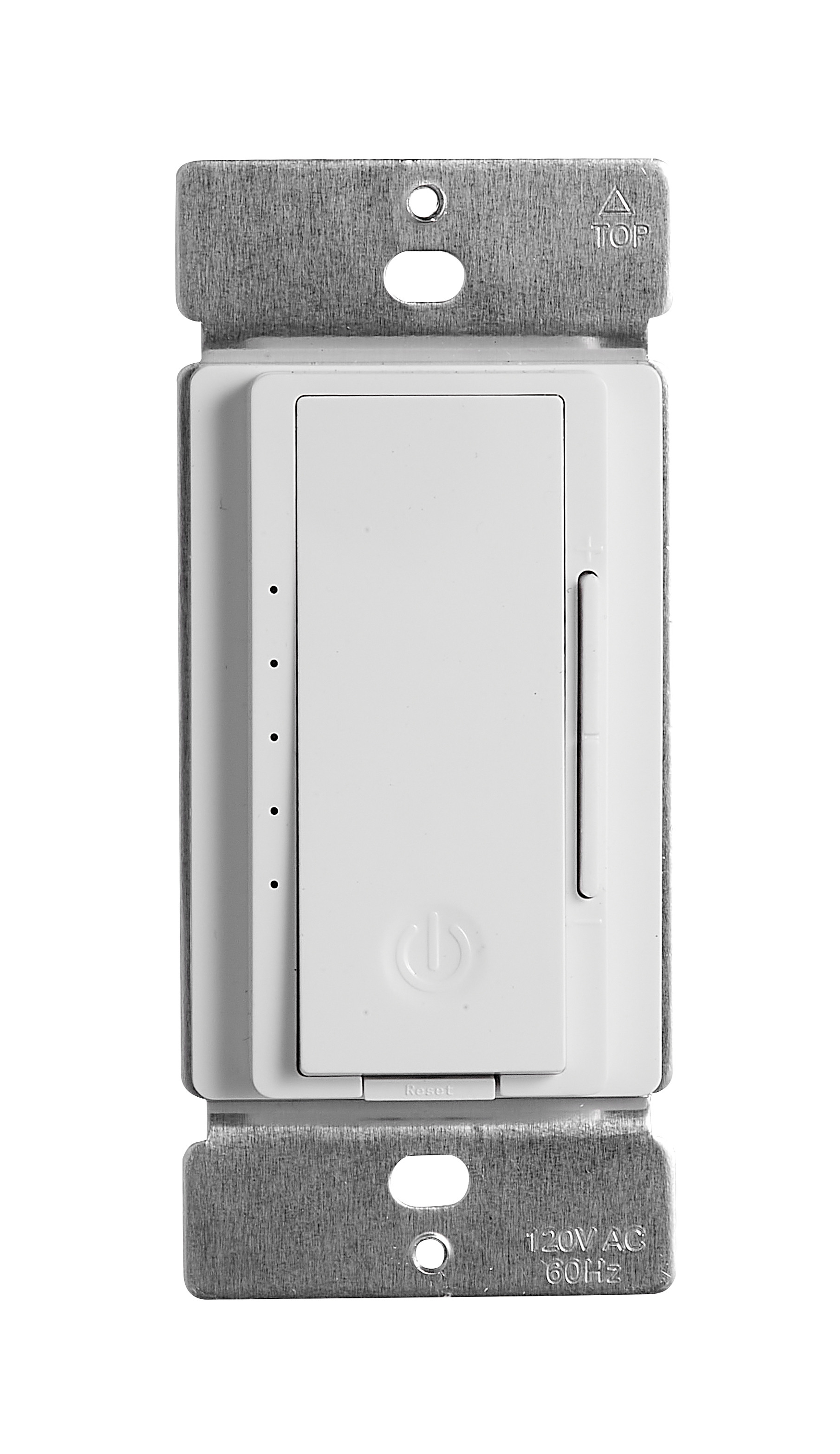

BAK-012C No-Neutral Two-Way Dimmer Switch
Model: BAK-012C
120V AC, 60Hz
ETL Listed
BAK-012C 120V/60Hz no-neutral two-way dimmer switch for 600W incandescent or halogen and 300W LED or CFL loads. ETL Listed; OEM support available.
BAK-012C is a 120V AC, 60Hz no-neutral dimmer for single-pole or two-location control. The verified load limits are 600W for incandescent or halogen lamps and 300W for LED or CFL loads, and the model is covered by the supplied Intertek cETLus authorization.
Verified Product Specifications
| Model | BAK-012C |
|---|---|
| Product Name | No-Neutral Two-Way Dimmer Switch |
| Category | Switches & Controls |
| Input Rating | 120V AC, 60Hz |
| Incandescent / Halogen Load | 600W maximum |
| LED / CFL Load | 300W maximum |
| Neutral Wire | Not required |
| Control | Single-pole or two-location control |
| Dimming | Brightness up/down; stepped and stepless dimming |
| Reset | Press and hold for 3 seconds |
| Dimensions | 105 × 45.8 × 43.4 mm |
| Weight | Approx. 90 g, excluding wall plate |
| Housing / Finish | PC; glossy finish |
| Operating Temperature | 0°C to 40°C |
| Wire Range | 18 AWG |
| Dielectric Withstand | 1250V AC for 1 minute |
| Flammability Rating | UL 94 V-0 |
| Color | White |
| Certification | ETL Listed |
| Standard MOQ | 100 pcs per model |
| Custom MOQ | 2,000 pcs per model |
B2B Supply Support
- Standard products generally start from 100 pcs per model
- Customized products generally start from 2,000 pcs per model
- OEM packaging and private label support
- Exact-model datasheet and certification file request support
- Sample and bulk-order communication through WhatsApp or email
Applications
- Residential lighting control
- Office and hospitality lighting
- Project-based two-location dimming
Certification Files
ETL Listed certification files are available upon request for model BAK-012C. Confirm the required market and exact model before document approval.
OEM Options
Custom logo, color, retail box, barcode labels, master cartons and Amazon seller packaging can be discussed based on order quantity.
Load and dimming functions
The verified maximum loads are 600W for incandescent or halogen lamps and 300W for LED or CFL lamps. Separate brightness-up and brightness-down controls support stepped and stepless dimming.
No-neutral wiring and approval checks
BAK-012C does not require a neutral wire and may be used for single-pole or two-location control. Confirm compatibility with the intended lamps, wiring plan and exact-model installation guide before sample approval.
